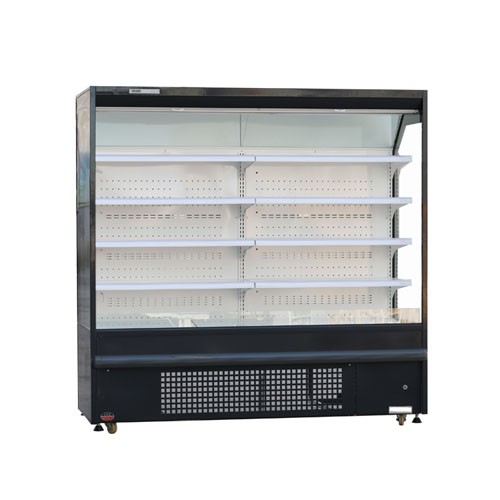

PHIYOND LFG-2008Y Multideck Open Chiller
| NO. | Product Model | LFG-2008Y |

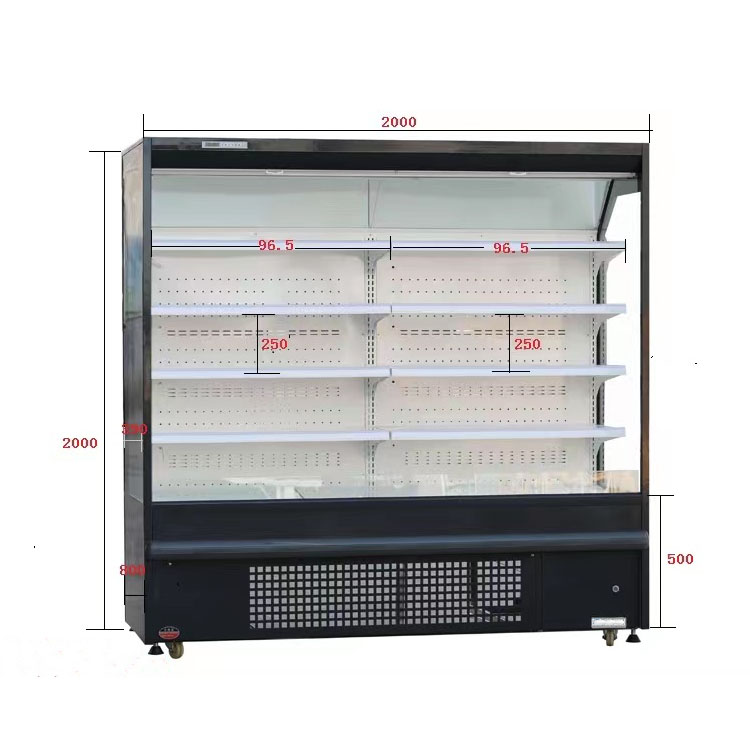

| 1 | External Dimension(WxDxH) (mm) | 2000*800*2000 |
| 2 | Cooling Mode | Air Cooling |
| 3 | Climate Class | ST |
| 4 | Temperature Range (°C) | 2-8 |
| 5 | Voltage/Frequency (V/Hz) | 220-240/50 |
| 6 | Rated Current（A） | 8 |
| 7 | Total Input Power（W） | 1600 |
| 8 |
Power Consumption (Nominal/Measured) (kW•h/24h) |
－ |
| 9 | Noise dB(A) | ﹤42db |
| 10 | Foaming Agent | Cyclopentane |
| 11 | Thickness of Foaming Layer (mm) | 40 |
| 12 | Condensing Unit Brand/Model | BOYARD/HQHL-30ENP |
| 13 | Compressor Brand/Model | BOYARD/QHL-30E |
| 14 | Refrigerant | R22 |
| 15 | Refrigerant Charge (g) | 1800 |
| 16 | Condenser | Copper Tube with Aluminum Fins |
| 17 | Conderser Fan | 3*60W Shaded-pole Asynchronous Motor+Aluminium Blades |
| 18 | Evaporator | Copper Tube with Aluminum Fins |
| 19 | Evaporator Fan | 2*40W Shaded-pole Asynchronous Motor+Aluminium Blades |
| 20 | Defrosting | Off-Cycle Defrosting |
| 21 | Thermostat Brand/Model | Elitech/LTC-90 |
| 22 | Thermostat Type | Ditital |
| 23 | AC Cord & Plug |
AC Cord: 1.8M AC Plug Type: Optional |
| 24 | Top Mirror Glass | √ |
| 25 | Light inside Cabinet |
1) 10PCS 110-240V LED Light 2) Spec: Length-870mm, Power-9W, Color Temperature-8500K |
| 26 | Inside Shelf |
4-Tier Adjustable Shelves with LED Light Material: 1.0mm thick electrostatic spraying plate |
| 27 | Shelf Standard Configuration(Tier*Section) | 4*2 |
| 28 | Casters | 4 Swivel Casters (H=100mm, Nylon Material) + 4 Adjustable Feet |
| 29 | Water Tray | √ |
| 30 | Cabinet Profile | Baking Varnish Aluminum Profile |
| 31 | Cabinet Profile Color | Black |
| 32 | Cabinet Exterior Material | Baking Varnish Steel Plate |
| 33 | Cabinet Exterior Color | Black |
| 34 | Cabinet Side Panel | Double-layer Hollow Toughened Glass+Baking Varnish Steel Plate |
| 35 | Cabinet Back Panel | PPGI (Prepainted Galvanized Steel Sheet) |
| 36 | Cabinet Inner Liner Material | Baking Varnish Steel Plate |
| 37 | Cabinet Inner Liner Color | White |
| 38 | Night Curtain | 2Pcs |
| 39 | N.W. (kg) | 270 |
| 40 | G.W. (kg) | 300 |
| 41 | Packing Dimension (WxDxH) (mm) | 2100*900*2100 |
| 42 | Packing Method | Wrapping Film+Wooden Frame |
| 43 | Loading Quantity (PCS)(1*40'HQ) | 13 |
