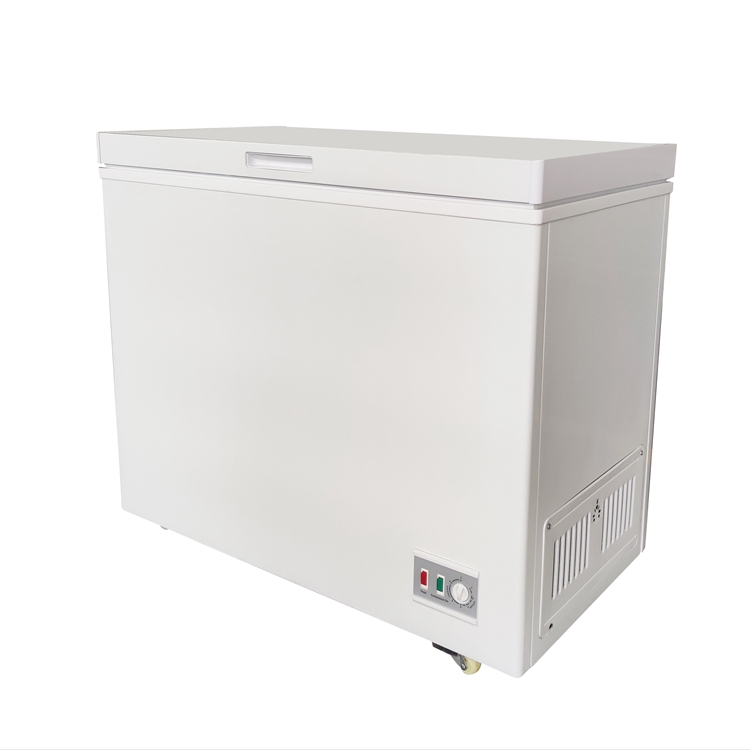

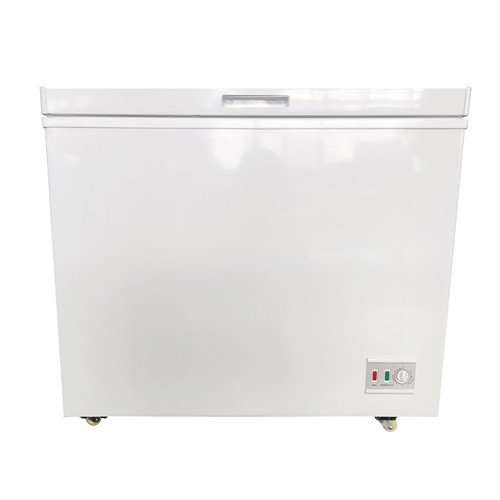

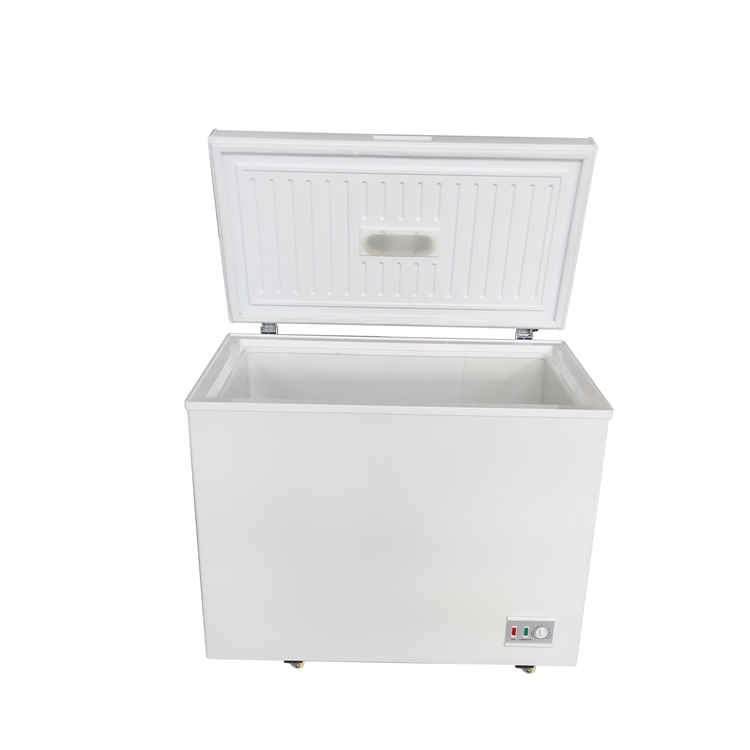

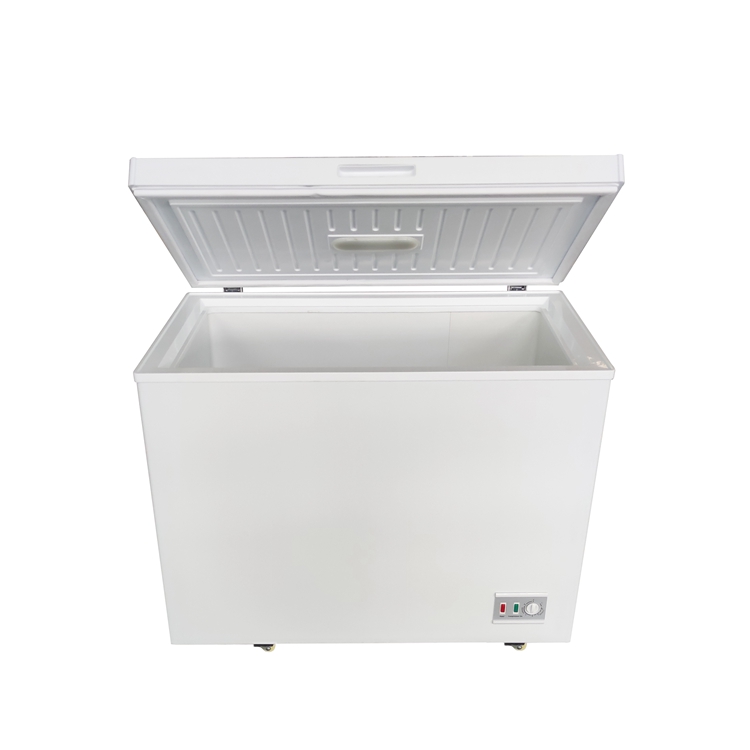

PHIYOND BD-208 189L Single Door Deep Freezer Small Chest Freezer
| No. | Product Model | BD-208 | |
| 1 | Type | Single-temperature Chest Freezer | |
| 2 | Number of Doors | 1 | |
| 3 | External Dimension (WxDxH) (mm) | 955*550*805 | |
| 4 | Effective Volume | Total Effective Volume （L） | 189 |
| Freezing Chamber Capacity（L） | 189 | ||
| Refr Chamber Capacity（L） | / | ||
| 5 | Climate Class | SN/N/ST | |
| 6 | Temperature Range（℃） | Min ≤-18 | |
| 7 | Voltage/Frequency (V/Hz) | 220~240/50 | |
| 8 | Rated Current（A） | 2 | |
| 9 | Total Input Power（W） | 105 | |
| 10 | Power Consumption (Nominal/Measured）(kW•h/24h) | 0.66 | |
| 11 | Noise dB(A) | ﹤42 | |
| 12 | Freezing Capacity (kg/24h) | 5 | |
| 13 | Foaming Agent | Cyclopentane | |
| 14 | Thickness of Cabinet Body Foaming Layer (mm) | 60 | |
| 15 | Thickness of Door Foaming Layer (mm) | 65 | |
| 16 | Density of Foaming Material (kg/m3) | 34-35 | |
| 17 | Compressor Brand/Model | WANBAO/EKA80 | |
| 18 | Compressor Refrigerating Capacity (W) | 140 | |
| 19 | Refrigerant | R600A | |
| 20 | Refrigerant Charge (g) | 53 | |
| 21 | Evaporator | Copper Tube/Bundy Tube | |
| 22 | Condensor | Built-in+Forced Cooling+Fan | |
| 23 | Fan |
Brand: SUNON Model: SF12025AT 220-240V/AC 50/60Hz 0.10AMP |
|
| 24 | Temperature Controller | CHANGZHOU KANGAO/WPF28 | |
| 25 | Temperature Control Type | Mechanical | |
| 26 | Temperature Compensation Mode | × | |
| 27 | Lamp | LED, G-Sensor | |
| 28 | AC Cord & Plug |
AC Cord: 1.8M AC Plug Type: Optional |
|
| 29 | Handle | Built-in Handle | |
| 30 | Lock | × | |
| 31 | Food Basket | 1 | |
| 32 | Number of ABS Defrost Shovel | 1 | |
| 33 | Removable Door Seal,Yes or No | Yes | |
| 34 | Swivel Caster | 4 Pcs,H=60mm | |
| 35 | Compressor Compartment Cover Plate | Metal Plate | |
| 36 | Cabinet Exterior Material | PCM | |
| 37 | Cabinet Exterior Color | White | |
| 38 | Cabinet Inner Liner Material | White Pre-coated Aluminum Sheet | |
| 39 | Cabinet Mouth Material | ABS Overall Injection | |
| 40 | Cabinet Mouth Color | White | |
| 41 | Door Material | White PCM+ABS | |
| 42 | Door Color | White | |
| 43 | N.W.（kg） | 35 | |
| 44 | G.W.（kg） | 39 | |
| 45 | Packing Dimension (WxDxH) (mm) | 1005*580*850 | |
| 46 | Packing Material | Cystosepiment Bottom Pallet+Strong Export Brown Carton | |
| 47 | Loading Qty (1*40'HC) | 138 | |
